Efficient Property Search using SkipList

Zillow wants to enhance its platform by improving the efficiency of property search operations. By using skip lists, a data structure that allows for fast insertion, deletion, and lookup of properties based on various attributes (e.g., price, location, size), Zillow aims to provide a more responsive and user-friendly experience. This approach helps users quickly find properties that match their criteria, making the platform more engaging and effective.

Design Technique

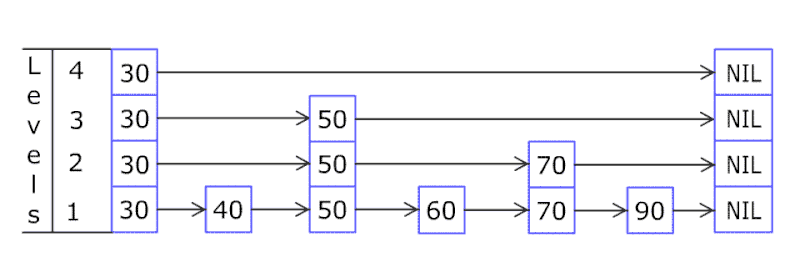

Skip lists are a probabilistic data structure that allows for fast search, insertion, and deletion operations. They achieve this by maintaining multiple levels of linked lists, where each higher level skips over a larger number of elements. This design provides a balance between simplicity and efficiency, making it well-suited for dynamic data sets with frequent updates.

Learn more about Skip List here - Article

Implementation

• Represent properties with attributes such as price, location, and size.
• Define the skip list structure with levels and pointers for forward traversal.
• Set up probability and max level parameters for balancing.
• Insert properties into the skip list based on their attributes.
• Adjust the levels of the skip list nodes according to the defined probability.
• Implement deletion to remove properties from the skip list.
• Update pointers and levels to maintain the structure.
• Implement efficient search to find properties based on specific attributes.
• Utilize the skip list’s layered structure to perform fast lookups.
• Ensure that the skip list remains balanced with frequent updates.
• Adjust the probability and maximum levels as necessary.
• Provide search results to users based on their queries.
• Ensure quick response times and relevant property listings.

Algorithm

Algorithm to insert a node in the skip list

Insert(list, searchKey, newValue)
local update[1..MaxLevel]
x := list→header
for i := list→level downto 1 do
while x→forward[i]→key < searchKey do
x := x→forward[i]
-- x→key < searchKey ≤ x→forward[i]→key
update[i] := x
x := x→forward[1]
if x→key = searchKey then x→value := newValue
else
lvl := randomLevel()
if lvl > list→level then
for i := list→level + 1 to lvl do
update[i] := list→header
list→level := lvl
x := makeNode(lvl, searchKey, value)
for i := 1 to level do
x→forward[i] := update[i]→forward[i]
update[i]→forward[i] := x

Algorithm to delete a node in the skip List

Delete(list, searchKey)
local update[1..MaxLevel]
x := list→header
for i := list→level downto 1 do
while x→forward[i]→key < searchKey do
x := x→forward[i]
update[i] := x
x := x→forward[1]
if x→key = searchKey then
for i := 1 to list→level do
if update[i]→forward[i] ≠ x then break
update[i]→forward[i] := x→forward[i]
free(x)
while list→level > 1 and
list→header→forward[list→level] = NIL do
list→level := list→level – 1

Time and Space Complexity.

• Time Complexity: O(logN) N:Properties.
• Space Complexity: O(N)

Here is the full code implementation Code
